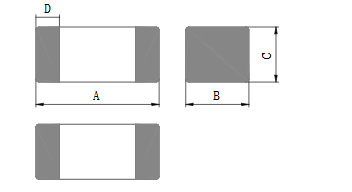

高频电感2012系列封装尺寸图
| SIZE 尺寸 | A(mm) | B(mm) | C(mm) | D(mm) |
| 2012 | 2.0±0.2 | 1.25±0.2 | 0.85±0.2 / 1.25±0.2 | 0.5±0.3 |
高频电感2012系列参数
| 型号 |
厚度 (mm) |
感值 (nH) | 测试频率 (MHz) | 额定电流 (mA) max. | 直流电阻DC(Ω)Max. |
| 2012F-1N5S-M | 0.85±0.20 | 1.5 | 100 | 300 | 0.1 |
| 2012F-1N8S-M | 0.85±0.20 | 1.8 | 100 | 300 | 0.1 |
| 2012F-2N2S-M | 0.85±0.20 | 2.2 | 100 | 300 | 0.1 |
| 2012F-2N7S-M | 0.85±0.20 | 2.7 | 100 | 300 | 0.1 |
| 2012F-3N3S-M | 0.85±0.20 | 3.3 | 100 | 300 | 0.13 |
| 2012F-3N9S-M | 0.85±0.20 | 3.9 | 100 | 300 | 0.15 |
| 2012F-4N7S-M | 0.85±0.20 | 4.7 | 100 | 300 | 0.2 |
| 2012F-5N6S-M | 0.85±0.20 | 5.6 | 100 | 300 | 0.23 |
| 2012F-6N8S-M | 0.85±0.20 | 6.8 | 100 | 300 | 0.25 |
| 2012F-8N2S-M | 0.85±0.20 | 8.2 | 100 | 300 | 0.28 |
| 2012F-10N-M | 0.85±0.20 | 10 | 100 | 300 | 0.3 |
| 2012F-12N-M | 0.85±0.20 | 12 | 100 | 300 | 0.35 |
| 2012F-15N-M | 0.85±0.20 | 15 | 100 | 300 | 0.4 |
| 2012F-18N-M | 0.85±0.20 | 18 | 100 | 300 | 0.45 |
| 2012F-22N-M | 0.85±0.20 | 22 | 100 | 300 | 0.5 |
| 2012F-27N-M | 0.85±0.20 | 27 | 100 | 300 | 0.55 |
| 2012F-33N-M | 0.85±0.20 | 33 | 100 | 300 | 0.6 |
| 2012F-39N-M | 0.85±0.20 | 39 | 100 | 300 | 0.65 |
| 2012F-47N-M | 0.85±0.20 | 47 | 100 | 300 | 0.7 |
| 2012F-56N-M | 0.85±0.20 | 56 | 100 | 300 | 0.75 |
| 2012F-68N-M | 0.85±0.20 | 68 | 100 | 300 | 0.8 |
| 2012F-82N-M | 0.85±0.20 | 82 | 100 | 300 | 0.9 |
| 2012F-R10-M | 0.85±0.20 | 100 | 100 | 300 | 0.9 |
| 2012F-R12-M | 0.85±0.20 | 120 | 50 | 300 | 0.95 |
| 2012F-R15-M | 0.85±0.20 | 150 | 50 | 300 | 1.0 |
| 2012F-R18-M | 0.85±0.20 | 180 | 50 | 300 | 1.1 |
| 2012F-R22-M | 0.85±0.20 | 220 | 50 | 300 | 1.2 |
| 2012F-R27-M | 0.85±0.20 | 270 | 50 | 300 | 1.3 |
| 2012F-R33-M | 0.85±0.20 | 330 | 50 | 300 | 1.4 |
| 2012F-R39-M | 1.25±0.20 | 390 | 50 | 300 | 1.3 |
| 2012F-R47-M | 1.25±0.20 | 470 | 50 | 300 | 1.5 |
